Tire Details & Specifications

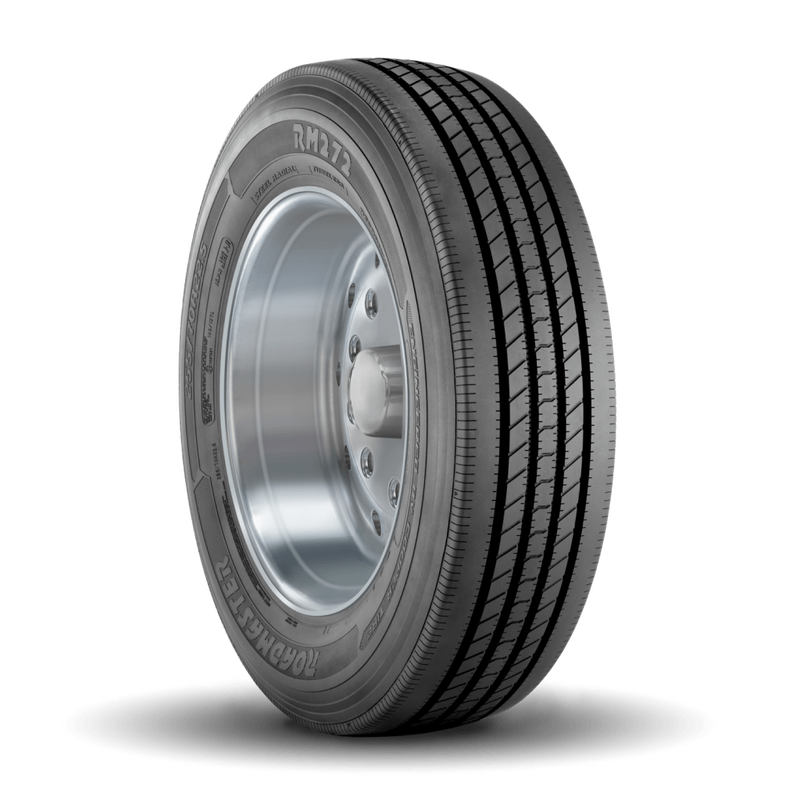

Roadmaster® RM272

Material # Tire Size Load Range Max Speed Approved Rim Width Overall Diameter Overall Width Overall Width Loaded Static Loaded Radius Tread Depth (1/32") Revs Tire Weight Single Max Load Single Inflation Pressure Dual Max Load Dual Inflation Pressure
90000026979 245/70R17.5 J 68 mph 6.75 - 7.50 in 31.2 in 9.5 in 10.3 in 14.4 in 14.5 664/mi 67.3 lbs 6005 lbs 125 psi 5675 lbs 125 psi
110 kmh 793 mm 242 mm 262 mm 366 mm 12.0 mm 413/km 30.6 kg 2725 kg 875 kPa 2575 kg 875 kPA
90000027585 295/75R22.5 G 75 mph 8.25 - 9.00 in 39.9 in 11.1 in 12 in 18.7 in 16.0 519/mi 106.1 lbs 6175 lbs 110 psi 5675 lbs 110 psi
120 kmh 1014 mm 281 mm 305 mm 474 mm 13.0 mm 323/km 48.2 kg 2800 kg 760 kPa 2575 kg 760 kPA
90000033791 295/75R22.5 H 75 mph 8.25 - 9.00 in 39.9 in 11.1 in 12 in 18.6 in 16.0 520/mi 107.8 lbs 7160 lbs 125 psi 6610 lbs 125 psi
120 kmh 1013 mm 282 mm 306 mm 473 mm 13.0 mm 323/km 49 kg 3250 kg 850 kPa 3000 kg 850 kPA
90000022852 255/70R22.5 H 75 mph 6.75 - 8.25 in 36.7 in 10.3 in 11.2 in 17.1 in 16.0 565/mi 89.7 lbs 5510 lbs 120 psi 5070 lbs 120 psi
120 kmh 932 mm 262 mm 284 mm 434 mm 13.0 mm 351/km 40.8 kg 2500 kg 830 kPa 2300 kg 830 kPA
90000022853 275/70R22.5 J 75 mph 7.50 - 8.25 in 38.1 in 11 in 11.9 in 17.7 in 18.0 545/mi 105.3 lbs 6940 lbs 130 psi 6395 lbs 130 psi
120 kmh 967 mm 279 mm 303 mm 449 mm 15.0 mm 338/km 47.9 kg 3150 kg 900 kPa 2900 kg 900 kPA
90000027584 11R22.5 G 75 mph 7.50 - 8.25 in 41.2 in 11.3 in 12.2 in 19.2 in 16.0 503/mi 110.7 lbs 6175 lbs 105 psi 5840 lbs 105 psi
120 kmh 1047 mm 287 mm 310 mm 488 mm 13.0 mm 313/km 50.3 kg 2800 kg 720 kPa 2650 kg 720 kPA
90000033629 11R22.5 H 75 mph 7.50 - 8.25 in 41.2 in 11.2 in 12.1 in 19.2 in 16.0 503/mi 112.5 lbs 6610 lbs 120 psi 6005 lbs 120 psi
120 kmh 1047 mm 284 mm 307 mm 488 mm 13.0 mm 313/km 51.2 kg 3000 kg 830 kPa 2725 kg 830 kPA
90000033790 11R24.5 H 75 mph 7.50 - 8.25 in 43.3 in 11.1 in 12 in 20.2 in 16.0 479/mi 121.9 lbs 7160 lbs 120 psi 6610 lbs 120 psi
120 kmh 1100 mm 282 mm 304 mm 514 mm 13.0 mm 297/km 55.4 kg 3250 kg 830 kPa 3000 kg 830 kPA
